K151559
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

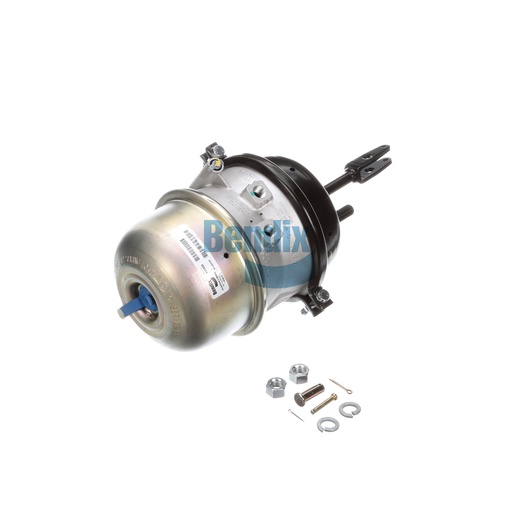

The Bendix Spring Brake (S-Cam) is an essential component designed to provide superior braking performance for commercial vehicles. This double diaphragm chamber is built to handle high pressures and extreme conditions, featuring a stroke of 3.00 inches and a robust design that ensures reliability. With an operating temperature range from -40°F to 175°F, this spring brake maintains performance even in challenging environments. Its precise engineering allows for smooth operation and quick response, enhancing vehicle safety and control. The Bendix Spring Brake is ideal for heavy-duty applications, making it a valuable addition to any fleet. For high-quality, genuine Bendix parts, Source One Parts Center is your trusted source.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.48 IN (37.5 MM)
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Clamp Angle
315°
Height
381.0 mm (15.0 in)
Stud Spacing
4.75 IN (120.7 MM)
Port Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.72 lb
