K151561
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

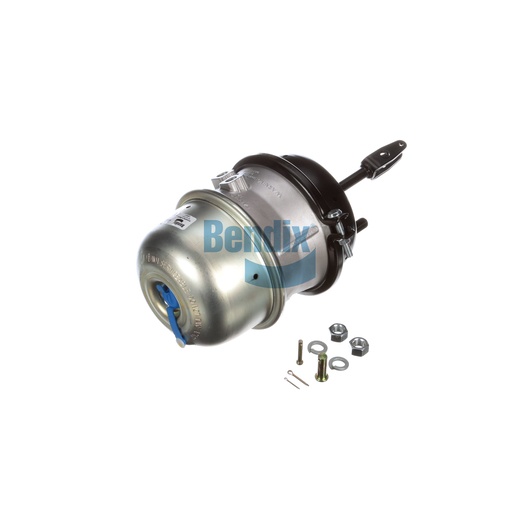

The Bendix Spring Brake (S-Cam) is essential for effective braking in commercial vehicles, designed to provide reliable performance under heavy-duty conditions. This chamber is equipped with a double diaphragm design and a stroke of 3.00 inches, ensuring responsive actuation for optimal braking force. With its robust construction, this spring brake is engineered to withstand extreme conditions, making it a dependable choice for fleet operators. The integrated features enhance the reliability of the braking system, contributing to overall vehicle safety. Investing in quality components like this spring brake is crucial for maintaining the performance and longevity of your vehicle's braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that you receive reliable and high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.48 IN (37.5 MM)
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Clamp Angle
225°
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Port Angle
315°
Height
381.0 mm (15.0 in)
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.72 lb
