K153451

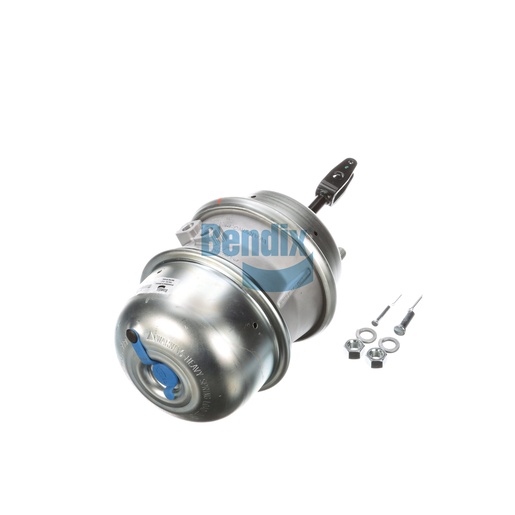

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is meticulously designed to facilitate efficient braking in S-Cam systems, contributing to the overall safety and control of commercial vehicles. This spring brake features a double diaphragm design, ensuring robust performance with a stroke of 3.00 inches. Built to withstand harsh operating conditions, it has a maximum operating temperature of 175°F and is engineered for easy installation with standard mounting configurations. This component is crucial for the reliability of the braking system, providing dependable stopping power during critical maneuvers. With a focus on durability, it is ideal for heavy-duty applications and ensures compliance with industry standards. For those seeking high-quality Bendix parts, Source One Parts Center is the premier destination, dedicated to providing only the best OEM components for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.46 IN (37.2 MM)
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Port Angle
315°
Stud Spacing
4.75 IN (120.7 MM)
Height
446.0 mm (17.56 in)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Service Chamber Joint Type
Crimped
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
19.1 lb
