DESCRIPTION

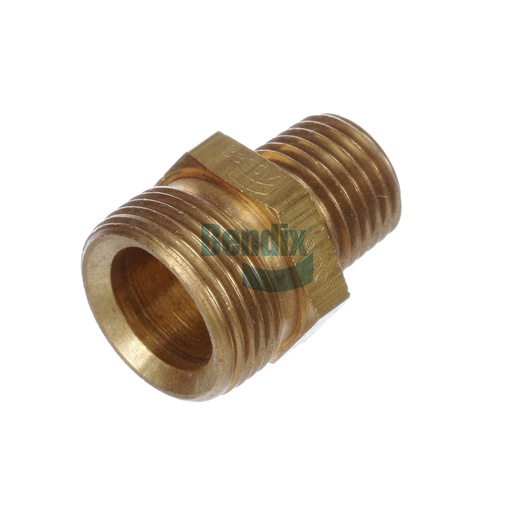

The Bendix Stud is a crucial component used in air disc brake systems, providing sturdy connections for hoses and fittings within the braking assembly. Its lightweight design (0.0 kg) ensures easy handling during installation, while its durable construction is engineered to withstand the demands of heavy-duty applications. The stud facilitates secure connections, enhancing the overall reliability and safety of your braking system. By choosing genuine Bendix OEM parts from Source One Parts Center, you ensure your vehicle is equipped with quality components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-007-049: Fitting - Brake System, Air Line, Hose, Tube, Plumbing
Harmonized System (HS) Code
741539
Country of Origin
United States
Parameter
Value
Weight
0.07 lb
