DESCRIPTION

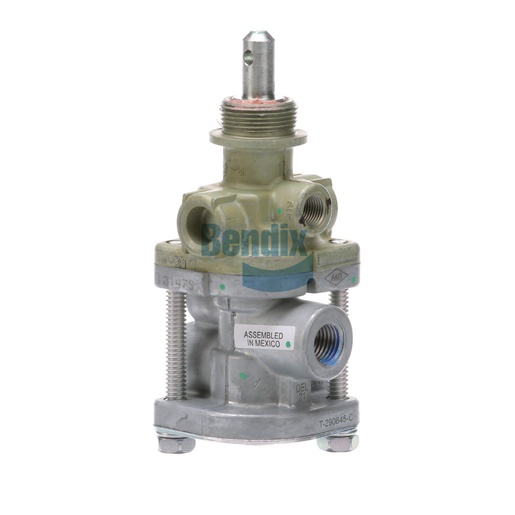

The Supply Valve is an essential part of the air disc brake system, responsible for managing air flow to ensure optimal braking performance. This valve is designed for reliability and efficiency, allowing for precise control of air pressure within the braking system. With a weight of just 0.5 kg, it is lightweight yet robust, making installation straightforward and efficient. The Supply Valve's dependable operation contributes to enhanced vehicle safety and performance, making it a critical component for any commercial fleet. For high-quality genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, providing components you can trust for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.7 mm (4.79 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .374 IN
Weight
1.15 lb
