$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

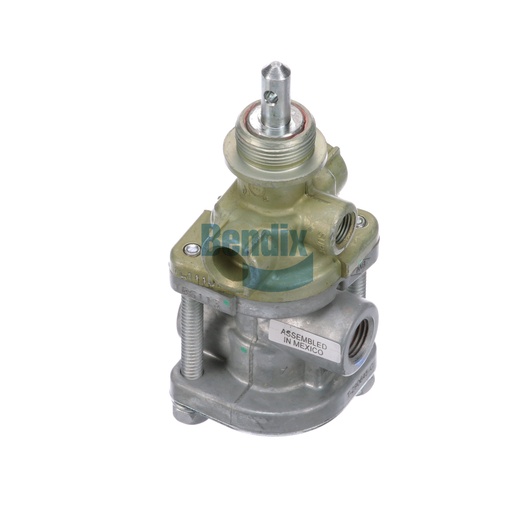

The Supply Valve by Bendix is designed to optimize air delivery in air disc brake systems, enhancing the overall braking performance of commercial vehicles. This valve features a compact design that allows for easy installation in tight spaces while maintaining robust functionality. With a net weight of 0.5 kg, it is lightweight yet durable, ensuring efficient operation without adding unnecessary bulk to your braking system. It operates within a wide temperature range, making it suitable for various environmental conditions and applications. The valve's reliable function contributes to a smoother braking experience, allowing drivers to maintain better control in demanding situations. Source One Parts Center is your go-to for genuine Bendix OEM parts, ensuring you receive quality components that enhance vehicle safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.2 mm (4.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .311 IN
Weight
1.15 lb
