226835

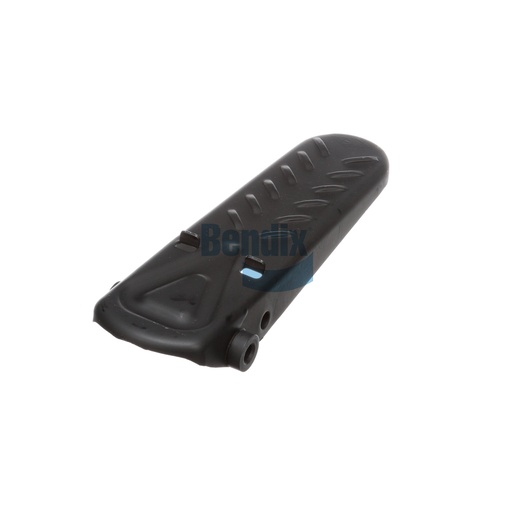

Treadle Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Treadle Assembly is a critical part of the Bendix air disc brake system, designed to provide precise control over braking force. This assembly is engineered for durability, allowing it to withstand the demanding conditions of commercial vehicle operation. Its lightweight design ensures ease of installation and maintenance, while its robust construction guarantees reliable performance over time. By ensuring the proper function of the treadle assembly, you enhance the overall safety and responsiveness of your braking system. Choose Source One Parts Center for your Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-010-125: Plate & Treadle Assembly
Length
275.0 mm (10.83 in)
Height
47.0 mm (1.85 in)
Harmonized System (HS) Code
870899
Width
91.0 mm (3.58 in)
Country of Origin
United States
Weight
1.28 lb
