$219.95
$263.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

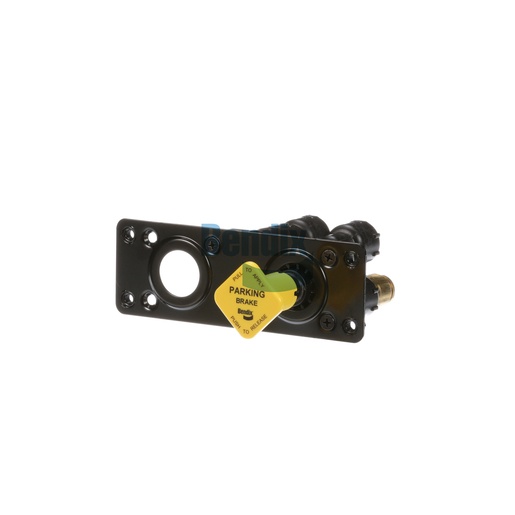

The Dash Valve is an essential component in the air brake system of commercial vehicles, ensuring optimal performance and safety. This part is designed to regulate air pressure with precision, providing reliable functionality that enhances brake responsiveness. With features like a compact design, M6 mounting, and multiple exhaust and supply ports, it integrates seamlessly into your vehicle's braking system. Its robust construction allows it to operate efficiently within a temperature range of -40 °F to 200 °F, making it suitable for various driving conditions. By maintaining the right pressure, the Dash Valve helps prevent brake fade, ensuring that your vehicle stops reliably under heavy loads. When you choose genuine Bendix OEM parts from Source One Parts Center, you’re guaranteed quality and compatibility, ensuring your commercial vehicle functions at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Exhaust Port
1/2 PTC
Height
151.9 mm (5.98 in)
Length
165.1 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Width
57.2 mm (2.25 in)
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.15 lb
