$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

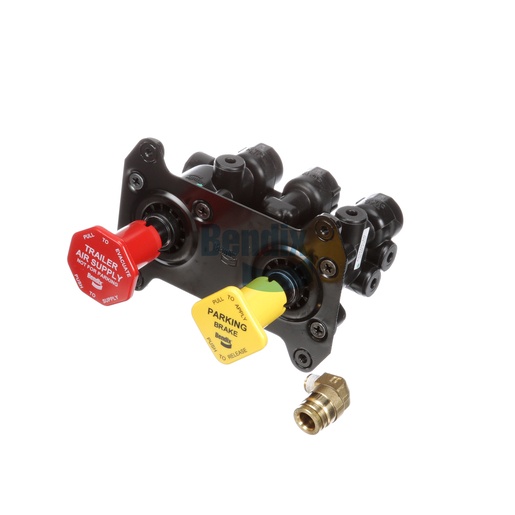

The Bendix Dash Valve is a critical component of your vehicle's braking system, engineered for reliability and performance. Designed to control air pressure within the braking system, it ensures responsive and efficient braking action. With robust construction and precision engineering, this valve is built to withstand the demands of heavy-duty applications, making it essential for commercial vehicles. Source One Parts Center is the ideal source for genuine Bendix OEM parts, ensuring your vehicle remains safe and operational on the road.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Auxiliary Port
1/8-27 NPT
Height
131.6 mm (5.18 in)
Length
136.1 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.49 lb
