$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

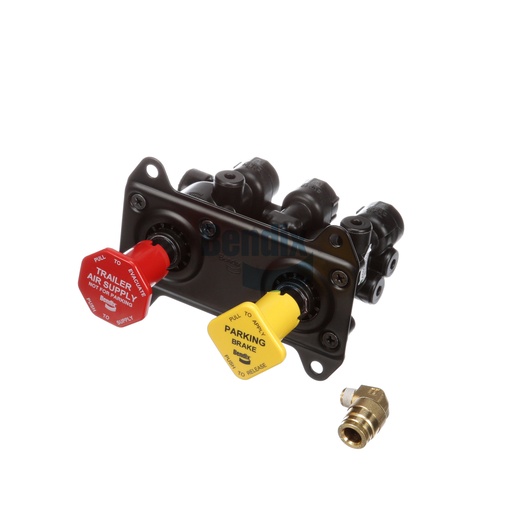

The Dash Valve is an integral part of the air brake system, facilitating the effective distribution of air pressure to ensure optimal brake performance. This valve is designed to handle high pressure and temperature variations, making it suitable for demanding commercial applications. Featuring multiple ports for efficient air delivery and equipped with buttons for easy operation, the Dash Valve enhances the overall functionality of the braking system. Its robust construction and reliable performance help prevent brake fade and ensure safety on the road. When you choose Source One Parts Center for your Bendix OEM parts, you're selecting a supplier committed to quality and reliability in every component.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Auxiliary Port
1/8-27 NPT
Height
131.6 mm (5.18 in)
Length
136.1 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Weight
1.47 lb
