$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

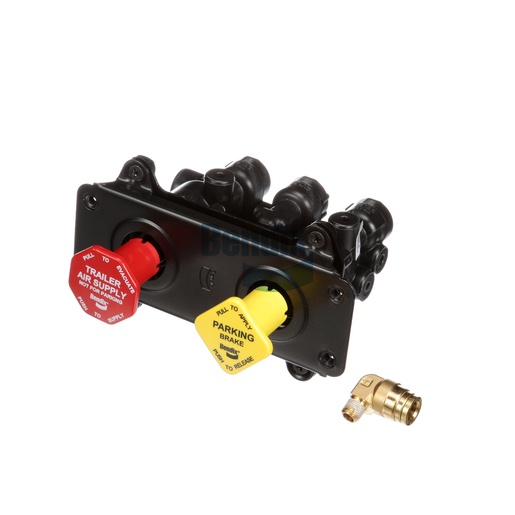

The Bendix Dash Valve is a critical component for the air disc brake systems in commercial vehicles, providing essential control over brake functionality. This valve features robust construction and is designed to operate effectively under a wide range of temperatures, from -40 °F to 200 °F. With multiple ports for efficient air management, it ensures precise control of brake engagement, enhancing safety and performance on the road. Its compact design, weighing only 0.8 kg, allows for easy installation and integration into existing systems. By utilizing genuine Bendix dash valves, you can ensure that your braking system operates smoothly and reliably. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, guaranteeing quality components for your maintenance and repair needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Auxiliary Port
1/8-27 NPT
Height
131.6 mm (5.18 in)
Length
136.1 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.86 lb
