K108701

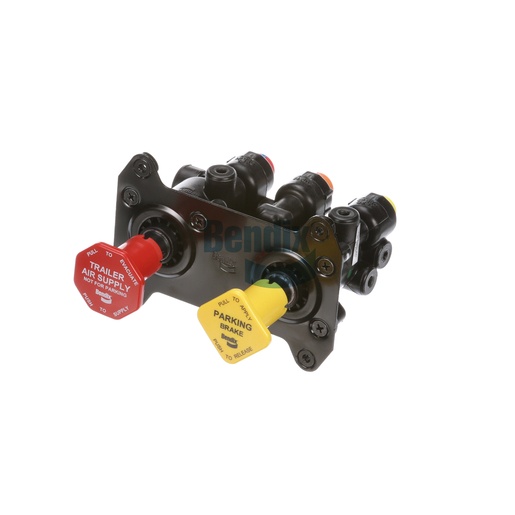

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is an integral part of the air disc brake system, ensuring effective control of air pressure for optimal braking performance. Designed with multiple ports for exhaust and supply, it allows for seamless airflow management, enhancing the responsiveness of the braking system. This valve operates efficiently in a range of temperatures from -40°F to 200°F, making it suitable for various commercial applications. Weighing only 1.6 lbs, it offers a lightweight design without compromising on strength and durability. For sourcing the highest quality Bendix OEM parts, Source One Parts Center is your trusted partner to keep your vehicles performing at their best.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Length
130.8 mm (5.15 in)
Width
136.2 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Exhaust Port
3/8 PTC (Black Cap)
Supply 11 Port
3/8 PTC (Green Cap)
Supply 12 Port
3/8 PTC (Orange Cap)
Delivery 21 Port
3/8 PTC (Red Cap)
Delivery 22 Port
3/8 PTC (Yellow Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Height
91.9 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.6 lb
