K109089

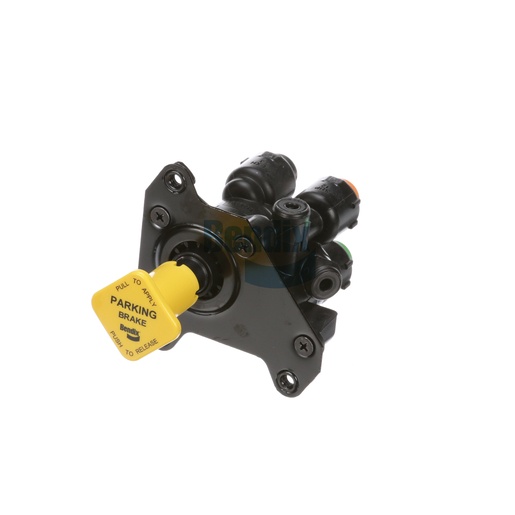

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is a crucial element in the air disc brake system, providing essential control for effective braking performance. This valve is designed for ease of use and reliability, featuring a compact design that fits seamlessly into the vehicle's brake system. With ports for exhaust and supply, it allows for efficient management of air pressure, enhancing the responsiveness of the brakes. The valve operates effectively in a temperature range of -40°F to 200°F, making it suitable for various operating conditions. Weighing just 0.98 lbs, this dash valve is lightweight yet robust enough to handle the demands of commercial usage. When you need dependable air brake components, Source One Parts Center is your trusted supplier of genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1/4-20 UNC-2B (3x)
Height
133.6 mm (5.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Port
3/8 PTC (Black Cap)
Supply 11 Port
3/8 PTC (Green Cap)
Supply 12 Port
3/8 PTC (Orange Cap)
Delivery 21 Port
3/8 PTC (Yellow Cap)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Length
93.5 mm (3.68 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
0.98 lb
