$209.95
$251.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

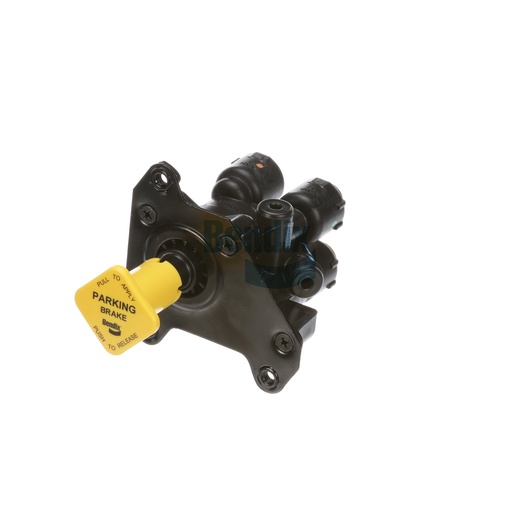

The Dash Valve is an essential component in the air brake system of commercial vehicles, providing precise control over the braking functions. Designed for durability, this valve features multiple ports for optimal air flow management, ensuring effective brake operation. With a maximum operating temperature of 200°F and a minimum of -40°F, it’s built to perform reliably in a wide range of environmental conditions. The valve's robust construction allows for seamless integration within the braking system, contributing to overall safety and efficiency. Its compact dimensions make it easy to install and maintain, which is crucial for fleet operators looking to minimize downtime. This dash valve is engineered to enhance the performance and responsiveness of your vehicle's braking system, ensuring you can rely on it in critical situations. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1/4-20 UNC-2B (3x)
Height
131.0 mm (5.16 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Length
93.0 mm (3.66 in)
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Button(s) Included
Yes
Weight
0.95 lb
