K119697

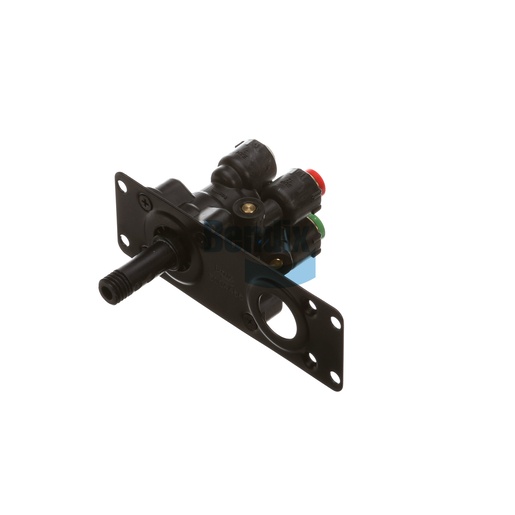

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your truck's braking capabilities with the Dash Valve, a vital component for air disc brake systems. This expertly designed valve is engineered to optimize the performance of your braking system, featuring multiple ports that facilitate efficient airflow and pressure regulation. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is built to perform under extreme conditions, ensuring reliability in any environment. The compact size and lightweight construction make installation straightforward, while its durable design guarantees long-lasting service. Source One Parts Center is your trusted source for genuine Bendix OEM parts, offering you peace of mind with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Height
131.0 mm (5.16 in)
Length
165.0 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 21 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Width
57.0 mm (2.24 in)
Harmonized System (HS) Code
848120
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Button(s) Included
No
Mounting
Ø .270 IN (4x)
Weight
1.01 lb
