K123772

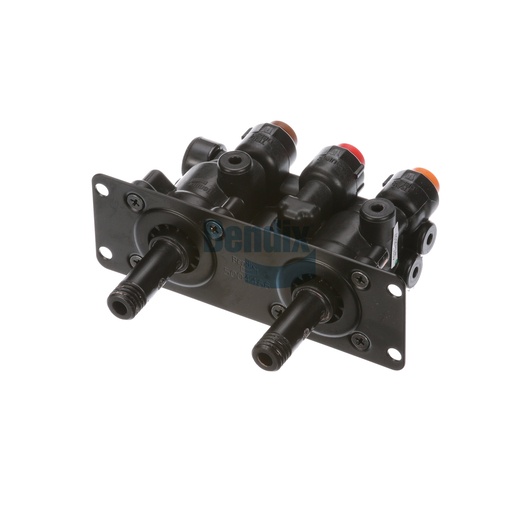

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Dash Valve is an integral component of your vehicle's braking system, designed to enhance the functionality of air disc brakes. This valve plays a critical role in controlling air flow, ensuring that the braking system operates efficiently under various conditions. With a robust design tailored for durability, it is built to withstand the challenges of heavy-duty use. The precise engineering of this dash valve ensures reliable performance, contributing to safer driving experiences. For genuine Bendix OEM parts, Source One Parts Center is the best place to find quality solutions for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Length
130.8 mm (5.15 in)
Width
165.1 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Exhaust Port
3/8 PTC
Delivery 21 Port
3/8 PTC (Brown Cap)
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 22 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Height
65.3 mm (2.57 in)
Harmonized System (HS) Code
848120
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Country of Origin
Mexico
Button(s) Included
No
Mounting
Ø .275 IN (4x)
Weight
1.45 lb
