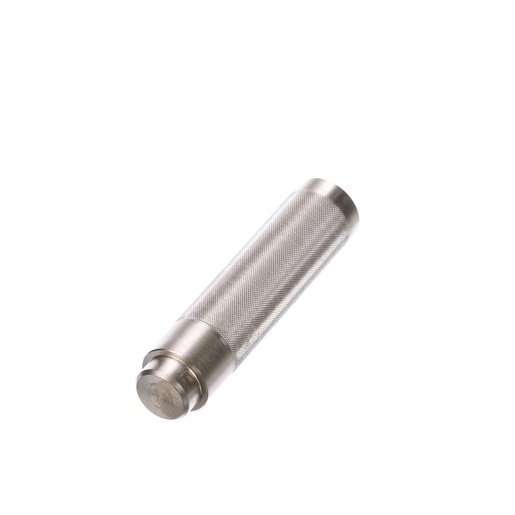

Z003934
Assembly Tool
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix assembly tool is an essential instrument for technicians working on air disc brake systems. Designed for ease of use, this tool simplifies the assembly process, ensuring that components fit securely and function optimally. With a compact design that weighs only 0.7 kg, it’s easy to handle and store in your workshop. This tool is not only a time-saver but also enhances the accuracy of assembly, which is critical for the safety and efficiency of commercial vehicles. For top-quality Bendix OEM tools and parts, Source One Parts Center is the ideal destination, providing you with the reliability and performance you expect.
SPECIFICATIONS
VMRS
053-006-009: Tool - General
Length
131.0 mm (5.16 in)
Height
30.0 mm (1.18 in)
Width
30.0 mm (1.18 in)
Harmonized System (HS) Code
820559
Country of Origin
Germany
Weight
1.5 lb
