This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

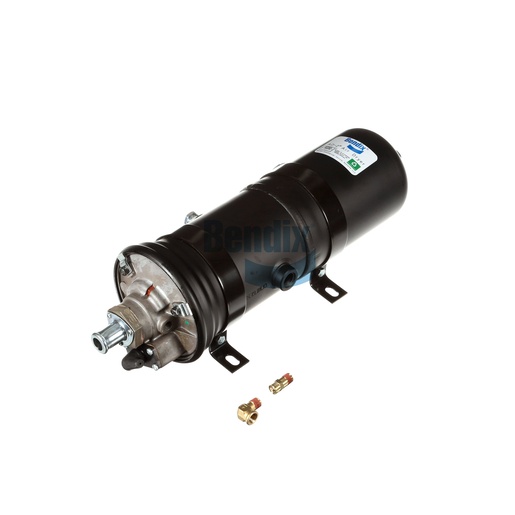

The Bendix Air Dryer is essential for maintaining the integrity of your vehicle's air system, removing moisture and contaminants to ensure reliable brake performance. Designed for heavy-duty applications, this air dryer utilizes advanced filtration technology to provide clean, dry air to your braking system, significantly reducing the risk of brake failure due to moisture or dirt. With a maximum operating temperature of 150°F and a robust construction, it can operate effectively across various environments, ensuring longevity and reliability. The air dryer includes multiple ports for flexible installation, making it a versatile choice for fleet applications. For those seeking reliable parts, Source One Parts Center is your go-to supplier for genuine Bendix OEM parts, ensuring your vehicle's air system remains in peak condition.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Safety Valve Opening Pressure
200 PSI
Mounting Angle
270°
Safety Valve Port Angle
345°
Harmonized System (HS) Code
842139
Control (Unloader) Port Angle
90°
Country of Origin
United States
Weight
25 lb
