$3,399.95
$4,079.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

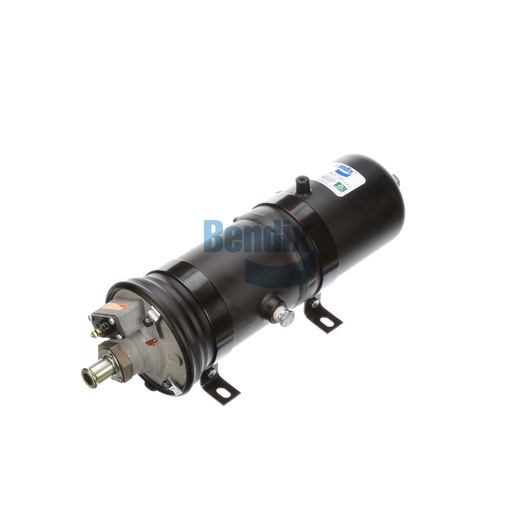

The Bendix Air Dryer is a crucial component for maintaining the efficiency of your vehicle's air brake system by removing moisture and contaminants from the compressed air. This dryer is designed to operate effectively under extreme conditions, with a maximum operating temperature of 150 °F (66 °C) and a minimum of -65 °F (-53 °C). With a net weight of 11.3 kg, it combines durability with effective performance. This air dryer is essential for preventing moisture buildup, which can lead to brake system failures. For high-quality Bendix OEM parts, trust Source One Parts Center to provide reliable solutions for your commercial vehicle's needs.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control (Unloader) Port Angle
0°
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 2
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Safety Valve Opening Pressure
200 PSI
Mounting Angle
270°
Safety Valve Port Angle
345°
Harmonized System (HS) Code
842139
Country of Origin
United States
Weight
24.89 lb
