This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

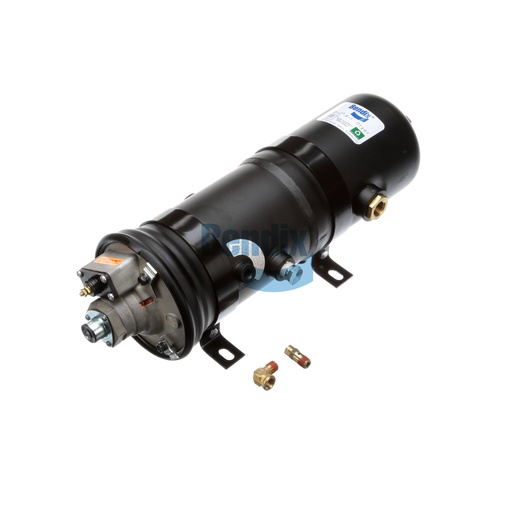

The Bendix Air Dryer is an essential component for air treatment in commercial vehicles, designed to remove moisture from the air system and enhance brake performance. This durable dryer features a compact design, ensuring it fits seamlessly into various vehicle configurations. With a net weight of 11.2 kg (24.65 lb), it is robust enough to endure the rigors of heavy-duty applications while providing reliable service. Operating effectively in temperatures from -65°F to 150°F, this air dryer ensures optimal performance in diverse climates. Its advanced filtration technology prevents contaminants from entering the brake system, contributing to improved safety and reliability. Regular maintenance with the Bendix Air Dryer is crucial for maintaining the integrity of the air brake system. When looking for genuine Bendix OEM parts, Source One Parts Center stands out as the ideal choice, ensuring you receive top-quality components that meet your vehicle's specific needs.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
24.65 lb
