$3,399.95
$4,079.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

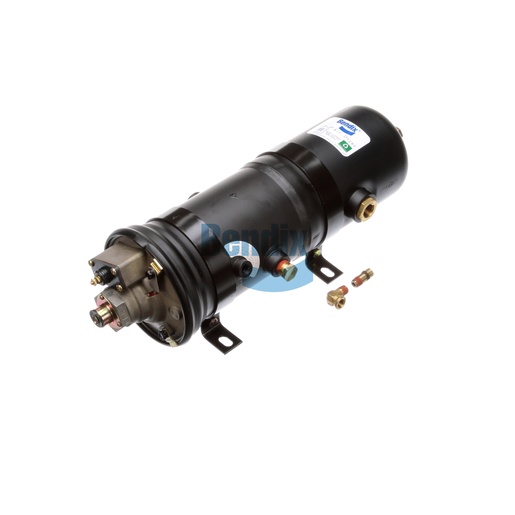

The Bendix Air Dryer is an essential component for maintaining the integrity of your vehicle's air brake system. This air treatment solution effectively removes moisture and contaminants from compressed air, ensuring that the braking system performs optimally and reducing the risk of corrosion and system failure. Designed for durability, the air dryer can withstand harsh operating conditions with a maximum temperature of 150°F and a minimum of -65°F. Its compact design allows for easy installation in various applications, making it a versatile choice for fleet maintenance. The air dryer's efficient operation and reliability make it an indispensable part of your air brake system, helping to extend the life of other components. Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts, ensuring you get quality that matches your vehicle's demands.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Heater Rating
60W / 12V
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
23.5 lb
