FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

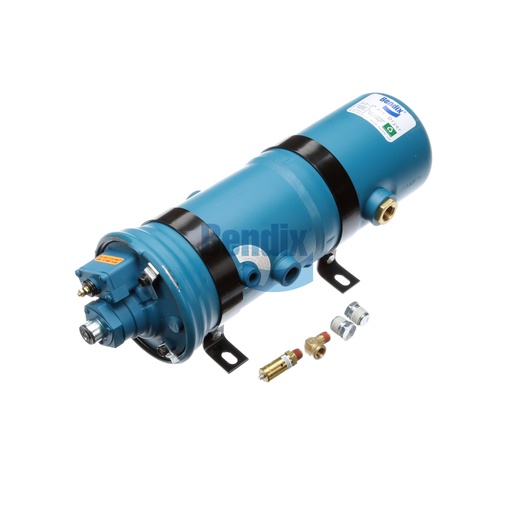

The Bendix Air Dryer is a vital piece of equipment designed to remove moisture and contaminants from the compressed air system in commercial trucks. By ensuring that the air supplied to the braking system is dry, it helps prevent brake failure and enhances overall vehicle safety. This air dryer features a robust design with a delivery port of 1/2-14 NPT and a heater rating of 60W/12V, making it exceptionally efficient in cold weather conditions. With a compact mounting size and lightweight construction, it is easy to install and maintain. The air dryer's performance is crucial for extending the lifespan of the air brake system and ensuring its optimal functionality. Furthermore, this model is engineered to withstand extreme temperatures, ensuring reliability in any environment. To find genuine Bendix parts, look no further than Source One Parts Center, where quality and authenticity are guaranteed.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Heater Rating
60W / 12V
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
23.48 lb
