$3,299.95
$3,959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

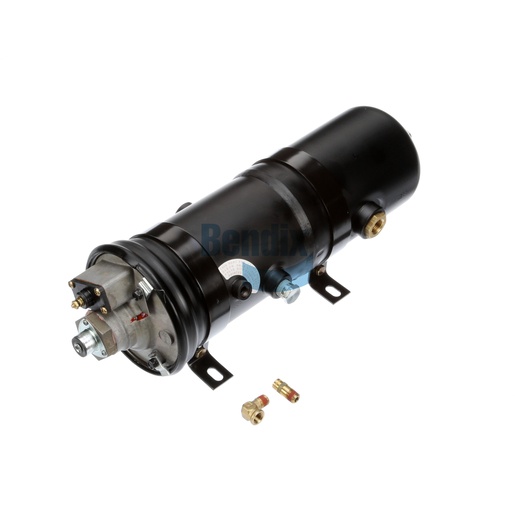

The Bendix Air Dryer is an essential part of your vehicle's air treatment system, designed to filter out moisture and contaminants from compressed air. This unit is crucial for protecting your braking and suspension systems, ensuring they operate efficiently and safely. With a net weight of 11.4 kg, this air dryer is robustly constructed to withstand the rigors of heavy-duty applications. It features advanced technology that ensures reliable operation in extreme temperatures, from -65 °F to 150 °F, and a purge valve that enhances its effectiveness in maintaining clean air supply. The design allows for easy integration into your existing system, making it a practical choice for fleet maintenance. For the best genuine Bendix OEM parts, trust Source One Parts Center, the leading provider of quality truck components.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Heater Rating
60W / 24V
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
25.09 lb
