$3,799.95
$4,559.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

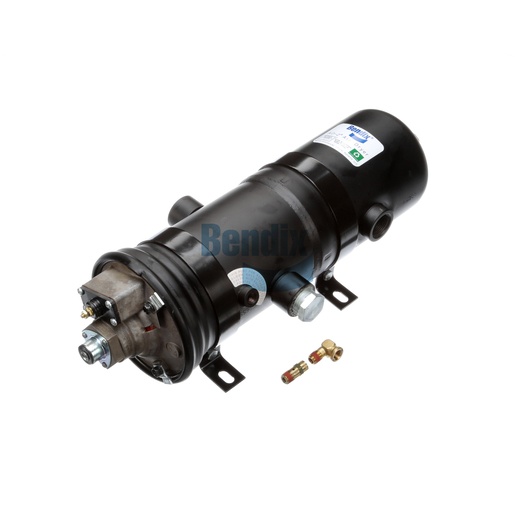

The Air Dryer is a vital component of the Bendix air treatment system, designed to remove moisture and contaminants from the compressed air before it reaches the brake system. This advanced air dryer ensures that your vehicle's braking system operates efficiently and reliably, preventing issues caused by moisture, which can lead to brake failure. With a net weight of 25.99 lbs, it is built for durability and effectiveness in demanding environments. Its design meets OEM specifications for quality and performance, making it an essential part of maintaining your commercial vehicle's braking integrity. When you choose Source One Parts Center for your Bendix OEM parts, you ensure your vehicle is equipped with the best components for safe operation.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1-11 1/2 NPT
Supply Port 2
1-11 1/2 NPT
Supply Port 1
1-11 1/2 NPT (Plugged)
Extended Purge Port
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Length
197.6 mm (7.78 in)
Safety Valve Opening Pressure
200 PSI
Width
210.6 mm (8.29 in)
Safety Valve Port Angle
345°
Height
528.6 mm (20.81 in)
Heater Rating
60W / 12V
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
25.99 lb
