286961R

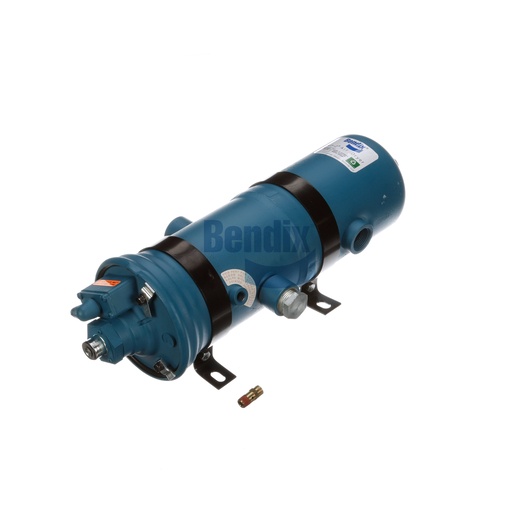

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix air dryer is an essential component for maintaining air quality in heavy-duty commercial vehicles. Designed to filter out moisture and contaminants from the compressed air system, this air dryer ensures that the air supply remains clean and dry, which is vital for the longevity of your vehicle's braking and suspension systems. With a maximum operating temperature of 150°F and a minimum of -65°F, it is engineered to perform effectively in extreme environmental conditions. The dryer features innovative technology to reduce the risk of freezing and moisture accumulation, thus enhancing the overall safety and efficiency of your truck. Its easy installation process makes it a preferred choice for fleet maintenance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring you receive the highest quality products for your commercial vehicle.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1-11 1/2 NPT
Supply Port 2
1-11 1/2 NPT
Supply Port 1
1-11 1/2 NPT (Plugged)
Extended Purge Port
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
26.39 lb
