This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

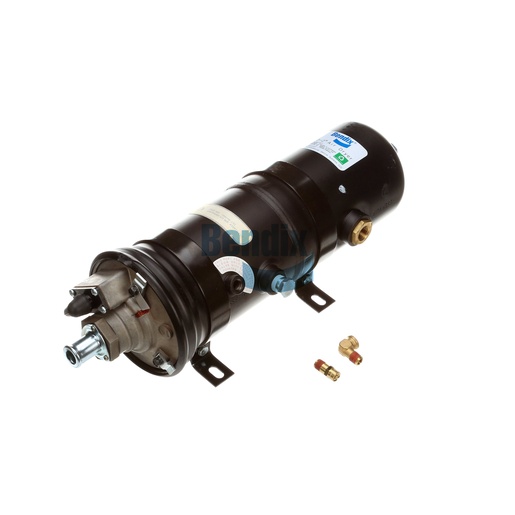

The Bendix Air Dryer is a critical component of your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air before it enters the braking system. This high-performance air dryer features advanced filtration technology, ensuring optimal air quality and extending the life of your vehicle's air components. With a maximum operating temperature of 150 °F, this air dryer operates efficiently under various conditions, making it perfect for heavy-duty applications. Its compact design allows for easy installation and maintenance, reducing downtime on the road. Source One Parts Center is your best choice for purchasing genuine Bendix OEM parts, providing you with the assurance of quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Supply Port 1 Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Heater Rating
60W / 12V
Harmonized System (HS) Code
842139
Control (Unloader) Port Angle
90°
Mounting Angle
90°
Country of Origin
United States
Weight
25 lb
