$3,299.95
$3,959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

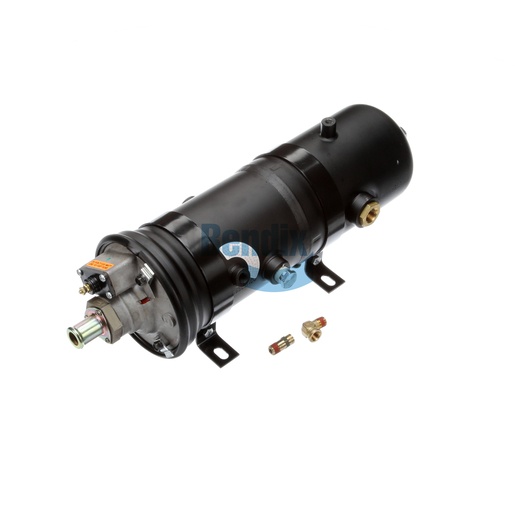

The Bendix Air Dryer is a vital component designed for air treatment in commercial vehicles, ensuring that the air supply remains clean and dry. This air dryer effectively removes moisture and contaminants from the compressed air system, which is crucial for preventing corrosion and ensuring optimal brake performance. With a robust design that can handle the demands of heavy-duty applications, this air dryer operates efficiently under a wide range of temperatures. Weighing 10.7 kg, it combines durability with effective drainage capabilities, making it an essential part of the air braking system. The air dryer’s configuration allows for easy installation and maintenance, ensuring that your vehicle remains road-ready. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, providing reliable components that enhance your vehicle's performance.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 1
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
23.55 lb
