DESCRIPTION

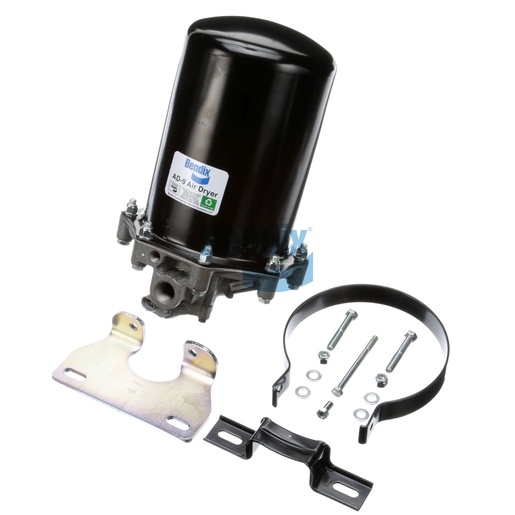

The Air Dryer is an essential component of the air treatment system in commercial vehicles, designed to remove moisture and contaminants from the air supply. Weighing 13.1 kg, this robust air dryer is engineered for high efficiency and reliability, ensuring that your vehicle’s braking system operates smoothly and safely. Its advanced design features a standard purge valve that enhances the efficiency of air delivery while contributing to the longevity of the braking components. The air dryer’s easy installation process minimizes downtime, allowing fleets to maintain operational efficiency without compromising safety. By investing in genuine Bendix OEM parts, you ensure that your air treatment systems perform at their best, providing peace of mind on the road. Source One Parts Center is your premier source for authentic Bendix parts, ensuring you get the quality you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.88 lb
