DESCRIPTION

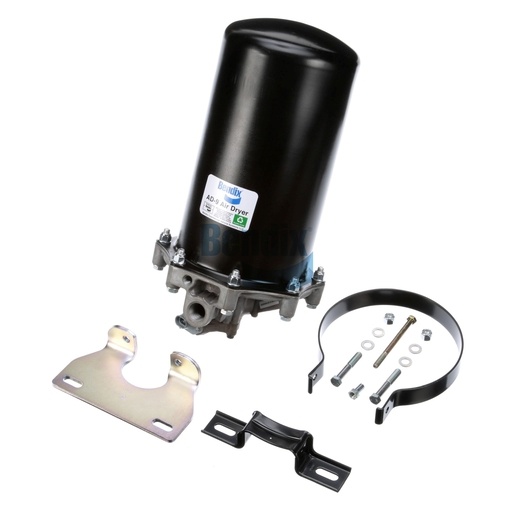

The Bendix Air Dryer is an integral part of your truck's air treatment system, designed to remove moisture and contaminants from the air supply, ensuring optimal performance of your air brakes. This model, part of the AD-9 series, features advanced technology that enhances reliability and efficiency, with a net weight of 13.0 kg (28.73 lb). Its robust construction ensures longevity, making it ideal for heavy-duty applications. By investing in this air dryer, you can extend the life of your braking components and improve overall performance. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, ensuring you receive only the best for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.73 lb
