DESCRIPTION

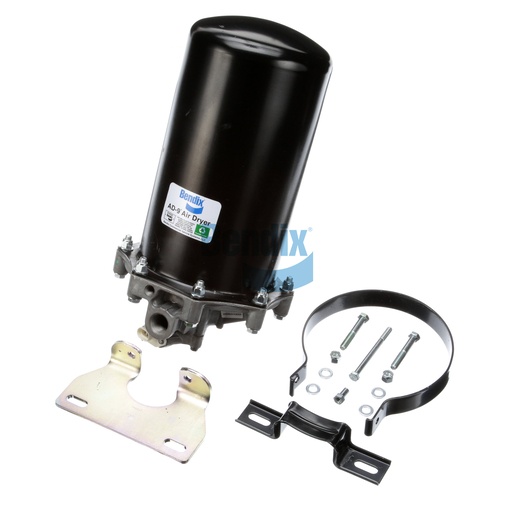

The Bendix AD-9 air dryer is a vital component for any commercial vehicle's air system, effectively removing moisture and contaminants to maintain optimum performance. With a maximum inlet temperature of 160 °F (71 °C) and capable of operating in extreme conditions, the AD-9 is designed to enhance the longevity of your air brake systems and improve overall safety. Its advanced filtration system ensures cleaner air supply, preventing the risk of corrosion and wear on critical air components. Weighing just 14.1 kg (31.0 lb) and featuring a space-efficient design, this air dryer offers easy installation without compromising performance or reliability. Rely on Source One Parts Center for authentic Bendix OEM parts, your trusted source for ensuring your air system functions flawlessly under all conditions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
223.0 mm (8.78 in)
Width
223.0 mm (8.78 in)
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Height
424.0 mm (16.69 in)
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
31 lb
