$739.95
$887.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

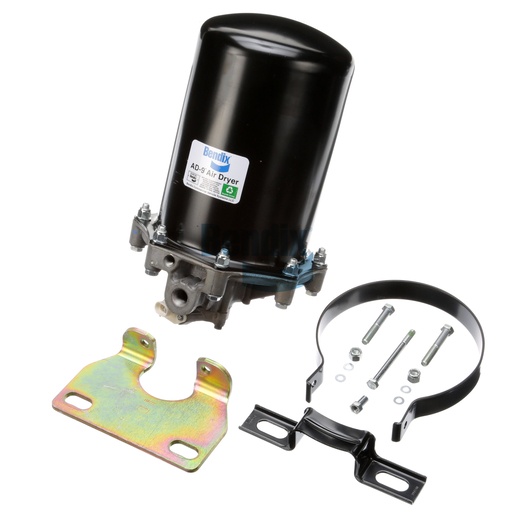

The Air Dryer is an integral part of Bendix's air treatment systems, specifically designed to enhance the efficiency and reliability of air brake systems in commercial vehicles. Weighing in at 13.1 kg, this robust air dryer is engineered to remove moisture and contaminants from the compressed air, preventing potential damage to critical braking components. Featuring advanced filtration technology, it ensures that clean, dry air is supplied to the braking system, which is essential for maintaining optimal performance and extending the lifespan of brake components. With a design that allows for easy installation and maintenance, this air dryer is perfect for both new and retrofitted trucks. Regular replacement of the air dryer can significantly reduce the risk of brake failures, enhancing safety and operational efficiency. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, providing high-quality, reliable solutions for your commercial vehicle's air treatment needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.88 lb
