065406
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

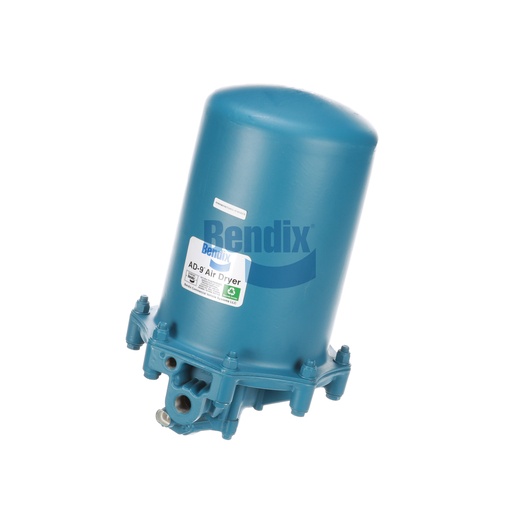

The Air Dryer is a key component in maintaining the integrity of your air braking system, ensuring that moisture and contaminants are effectively removed from the compressed air. This product features advanced technology designed for heavy-duty applications, making it suitable for a wide range of commercial vehicles. By preventing moisture buildup, it reduces the risk of brake freeze-up and extends the lifespan of air brake components, ultimately enhancing vehicle safety and performance. Its robust construction and compatibility with various Bendix systems make it an essential part for fleet maintenance. When searching for genuine Bendix OEM parts, Source One Parts Center stands out as the premier supplier, offering quality products that keep your commercial vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
25.99 lb
