DESCRIPTION

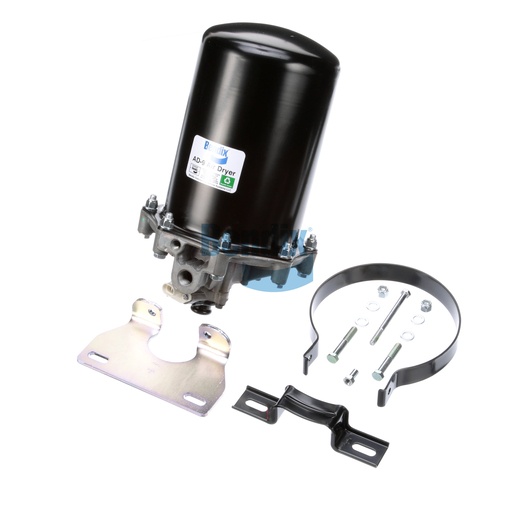

The Bendix Air Dryer is an essential component for maintaining a clean and efficient air supply in your commercial vehicle. Designed with advanced filtration capabilities, it removes moisture and contaminants from the air system, helping to prolong the life of other pneumatic components and enhance overall system performance. This stand-alone air dryer operates effectively in temperatures ranging from -40°F to 160°F, making it suitable for various climates and conditions. The standard purge volume and robust construction ensure reliability under heavy loads, while the easy installation and maintenance features save valuable time and effort during service. Additionally, it includes a heater/thermostat rated at 12V/75W, providing optimal performance in colder environments. When it comes to purchasing genuine Bendix OEM parts for your commercial vehicle, Source One Parts Center stands out as the premier choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29.19 lb
