$729.95
$875.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

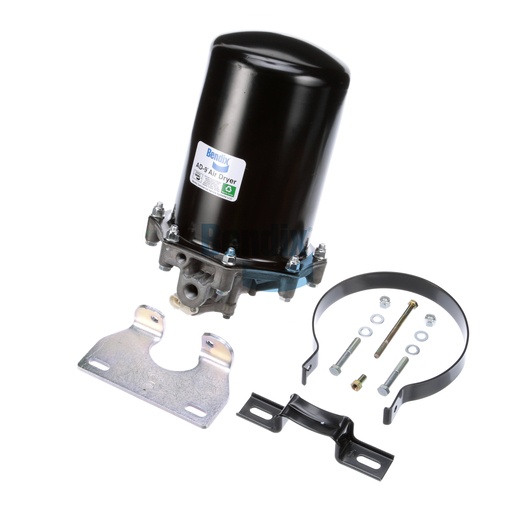

The Air Dryer is an essential component in the air treatment system of commercial vehicles, designed to remove moisture and contaminants from the compressed air supply. This particular air dryer features advanced technology to ensure optimal performance, preventing issues such as brake freeze-up and extending the life of air brake components. Its robust design and compatibility with various Bendix systems make it a reliable choice for fleet maintenance. By incorporating this air dryer into your vehicle's system, you can significantly enhance overall safety and reliability. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive the quality and performance you expect for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29.1 lb
