DESCRIPTION

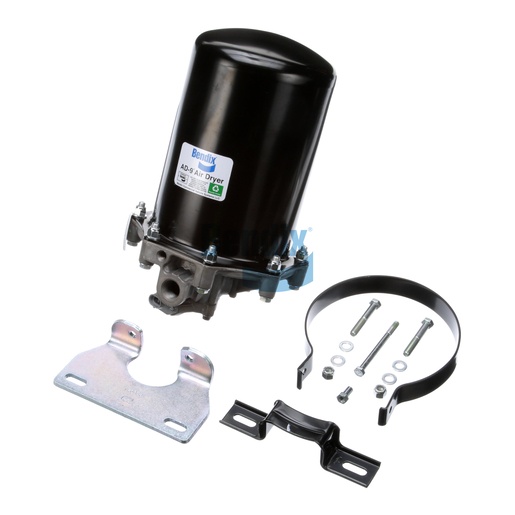

The Bendix Air Dryer is a crucial component designed to ensure clean and dry compressed air for the braking system of commercial vehicles. This model features a stand-alone design and is equipped with advanced filtration technology to remove moisture and contaminants from the air supply. With a net weight of 28.84 lbs, it is robust and designed for the heavy-duty demands of the trucking industry. Its efficient operation helps to prevent brake freezing in cold conditions and extends the life of air brake components, reducing maintenance costs. The air dryer operates within a wide temperature range, making it suitable for various climates. Fleet operators can rely on this product to maintain optimal brake performance and safety. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive top-quality products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.84 lb
