$749.95
$899.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

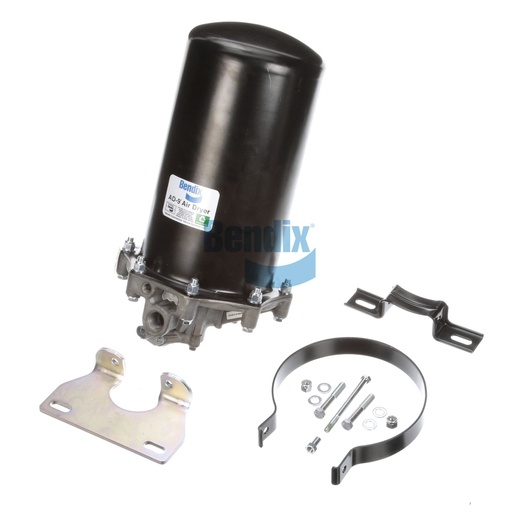

The Bendix Air Dryer is an essential component for maintaining the efficiency and reliability of your vehicle's air braking system. Designed to remove moisture and contaminants from the compressed air, this dryer ensures that your braking system operates at peak performance, thereby enhancing safety on the road. With a net weight of 14.2 kg, this durable air dryer is built to withstand the rigors of heavy-duty applications, providing long-lasting service. Manufactured in Mexico, it adheres to strict quality standards, ensuring reliability and durability. This air dryer is crucial for preventing brake system failures caused by moisture, making it an indispensable part of your commercial vehicle. For high-quality Bendix OEM parts, Source One Parts Center is the best place to find the components you need for optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
31.39 lb
