This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

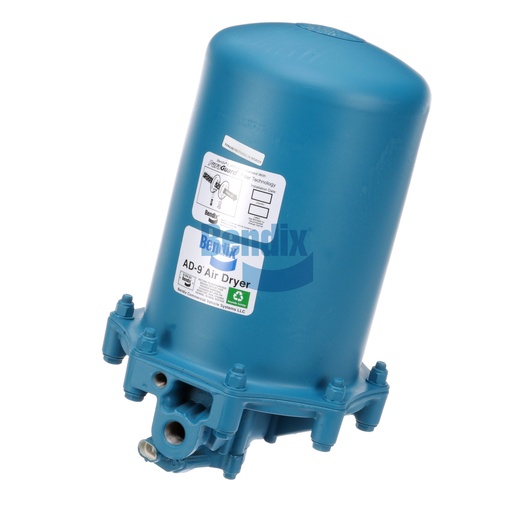

The Bendix Air Dryer is an essential component for maintaining the efficiency and reliability of your commercial vehicle's air system. Designed specifically for use with heavy-duty applications, this air dryer operates effectively in extreme temperatures, ranging from -40 °F to 160 °F, ensuring optimal air quality and pressure control. The standard purge volume and advanced filtration technology help to prevent moisture buildup, which can lead to system failures and costly repairs. With a gross weight of 10.9 kg (23.99 lb), this unit is built for durability and long-lasting performance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, offering the quality and reliability necessary for your commercial vehicle's success.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Volume
Standard
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
23.99 lb
