FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

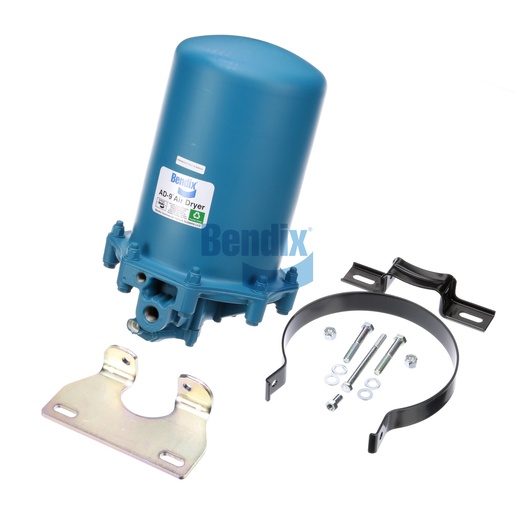

The Bendix Air Dryer is an integral part of any commercial vehicle's air treatment system, specifically engineered to remove moisture and contaminants from compressed air. This essential component guarantees optimal performance of air brakes and other pneumatic systems by ensuring clean, dry air is delivered consistently. Weighing 13.6 kg, this air dryer is robust yet designed for easy installation and maintenance. It features advanced filtration technology that significantly reduces the risk of corrosion and wear in air systems, extending the life of critical components. By investing in a Bendix Air Dryer, you're ensuring the reliability and safety of your vehicle on the road. Source One Parts Center is your trusted partner for all genuine Bendix OEM parts, offering unbeatable quality and service for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29.98 lb
