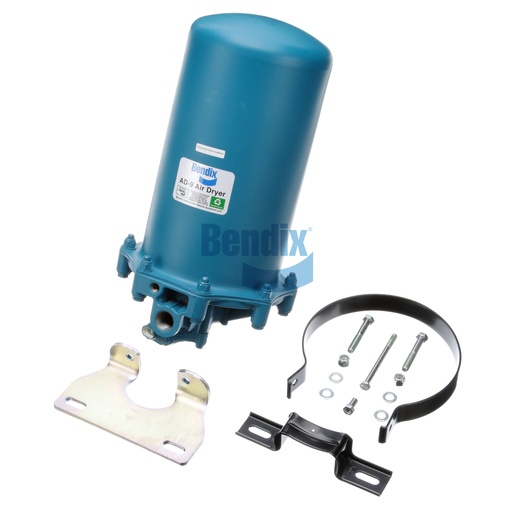

65228R
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a crucial component for maintaining clean and dry compressed air in your vehicle’s air brake system. Designed for efficient operation, this dryer features advanced filtration technology that removes moisture and contaminants, significantly extending the lifespan of air brake components. Weighing 14.1 kg, it offers robust performance even under demanding conditions, ensuring that your braking system operates smoothly and reliably. Its easy installation and maintenance features make it an ideal choice for fleet operations, saving time and costs in upkeep. For all your genuine Bendix parts, including this top-tier air dryer, Source One Parts Center is the best place to ensure your vehicles are equipped with the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
31 lb
