$849.95
$1,019.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

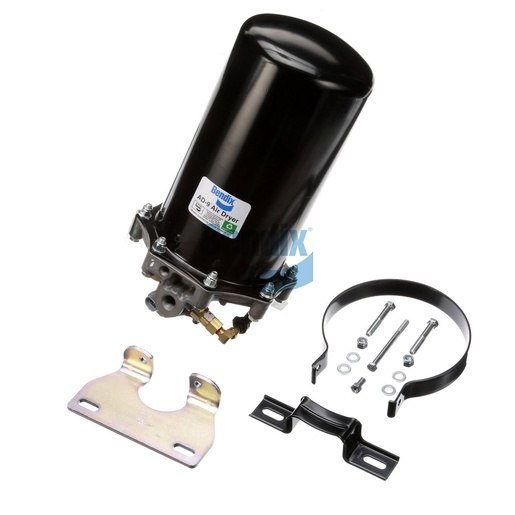

The Air Dryer is an essential component for maintaining the efficiency and reliability of your truck’s air brake system. Designed to remove moisture and contaminants from the compressed air, this unit prevents corrosion and damage that could lead to costly repairs. The Air Dryer features a robust design that ensures optimum performance, with a minimum operating temperature of -40 °F (-40 °C) and a maximum inlet temperature of 150 °F (66 °C). Its reliability is crucial for maintaining air pressure, which is fundamental for the proper functioning of your vehicle's braking system. By investing in this high-quality Air Dryer, you can ensure the longevity of your air brake system and enhance the safety of your commercial vehicle. When looking for top-tier Bendix OEM parts, Source One Parts Center is your go-to supplier, offering only the best parts for your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Fill Feature
1/8-27 NPT (Makeup Line Kit)
Clearance to Remove Cartridge
11.00 IN
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Drop-In (DI) version - do not replace with standard dryer.
Purge Volume
Extended
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
30.17 lb
