$589.95
$707.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

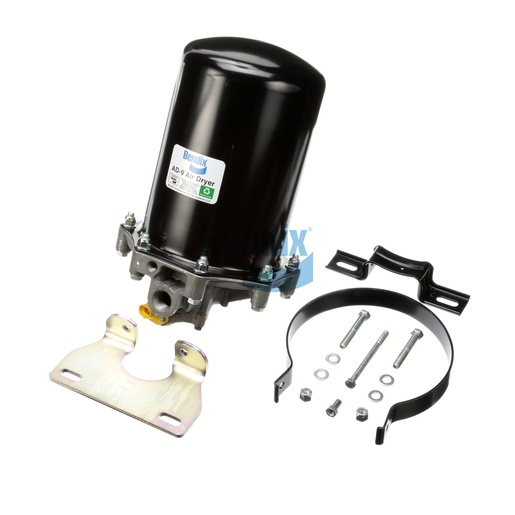

The Bendix Air Dryer is an essential component for maintaining optimal air quality in your commercial vehicle's brake system. This stand-alone air dryer works tirelessly to remove moisture and contaminants from the compressed air system, preventing rust and ensuring efficient brake operation. With a maximum inlet temperature of 160°F and a minimum operating temperature of -40°F, it is designed to perform in extreme conditions, making it a reliable choice for truck operators in various climates. The unit features a standard purge volume and a hard seat purge valve, which enhances its performance and durability. The air dryer's compact design includes convenient mounting options, making installation a breeze. It is also equipped with a heater/thermostat rated for 24V, ensuring effective operation even in colder environments. Given its robust construction and reliable functionality, investing in a Bendix Air Dryer means peace of mind for your braking system. For genuine Bendix OEM parts, Source One Parts Center is your best bet, offering quality and reliability you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 100W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
Yellow
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29.3 lb
