$409.95
$491.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

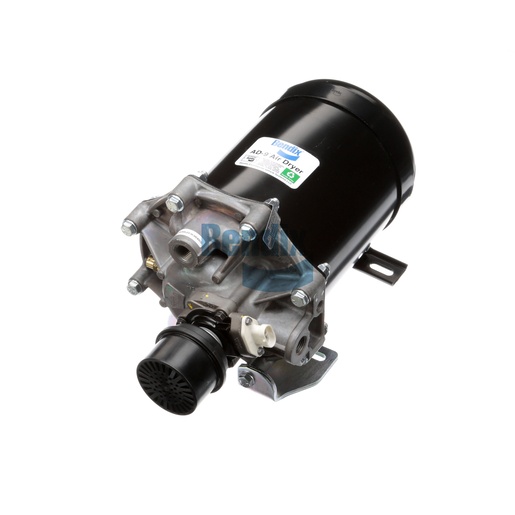

The Bendix Air Dryer is an essential component for maintaining the integrity of air brake systems in commercial vehicles. Designed to filter out moisture and contaminants from the compressed air, this dryer ensures that the air supply remains clean and dry, which is crucial for optimal brake performance and longevity. The AD-9 model is equipped with advanced features that enhance its efficiency and reliability, making it suitable for a wide range of heavy-duty applications. With a robust construction and easy installation, the air dryer is built to withstand the demands of the road, ensuring your fleet operates safely and effectively. By opting for genuine Bendix OEM parts, fleet operators can trust in the quality and performance of their components. Source One Parts Center is your reliable partner for authentic Bendix parts, providing the assurance you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Lower Mounting Bracket Angle (CCW from SUP)
270°
Upper Mounting Bracket Angle (CCW from SUP)
270°
Cartridge Thread
5/8-11 UNC-2A
Upper Mounting Bracket Height (from Lower Mounting Bracket)
6.50 IN
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Purge Exhaust Port
Standard (with Adapter / Silencer)
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
32.89 lb
