DESCRIPTION

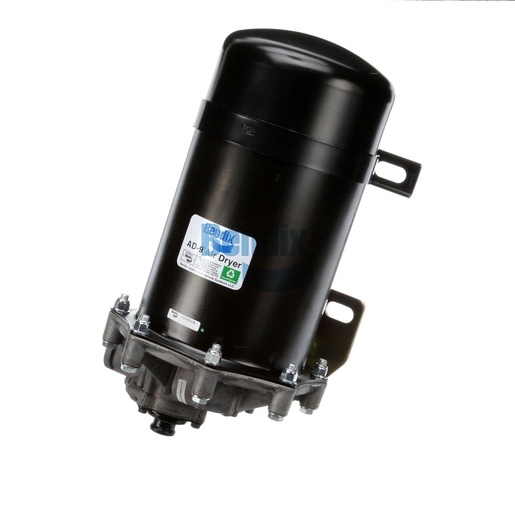

The Air Dryer is a vital component of your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air. This unit, featuring a stand-alone design, ensures that your braking system operates efficiently by maintaining clean, dry air. With a robust construction that withstands temperatures from -40°F to 160°F, this dryer is built for reliability under challenging conditions. Weighing 14.2 kg, it provides a substantial yet manageable solution for heavy-duty applications. Its efficient purge system helps maintain optimal performance, reducing the risk of air-related issues in your braking system. For your Bendix parts needs, Source One Parts Center offers genuine OEM components that you can trust for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
13.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Upper Mounting Bracket Height (from Lower Mounting Bracket)
6.50 IN
Harmonized System (HS) Code
842139
Lower Mounting Bracket Angle (CCW from SUP)
90°
Upper Mounting Bracket Angle (CCW from SUP)
90°
Purge Volume
Extended
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
31.2 lb
