$769.95
$923.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

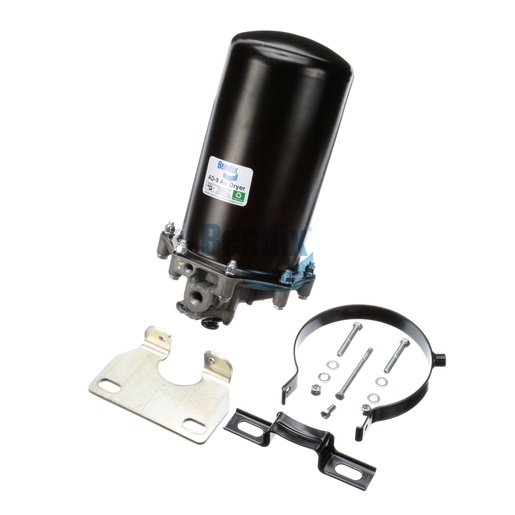

The Air Dryer is a key component in your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air used in braking systems. With a robust design and a weight of 14.1 kg, this stand-alone air dryer ensures optimal performance and longevity, even in tough conditions. Featuring a purge volume that is extended, it effectively manages moisture build-up, enhancing the reliability of your braking system. The Air Dryer's compatibility with various components makes it an ideal choice for fleet maintenance or individual truck repairs. By investing in this Air Dryer, you are ensuring the safety and efficiency of your vehicle's braking performance. For top-quality Bendix OEM parts, trust Source One Parts Center, your premier destination for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
13.00 IN
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Heater Connector Color
Gray
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
31 lb
