$799.95
$959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

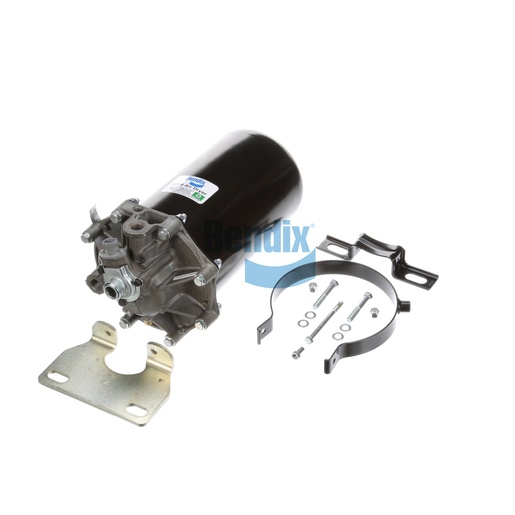

The Bendix Air Dryer is a fundamental component in the air treatment system, specifically designed to remove moisture and contaminants from the compressed air system in commercial vehicles. With a net weight of approximately 33.16 pounds, this air dryer features a robust construction that ensures reliable performance under demanding conditions. Its advanced design includes a purge volume that helps maintain optimal air quality, contributing to the longevity of your vehicle’s braking system. The air dryer's efficient operation helps prevent freezing and corrosion in the air system, enhancing overall vehicle safety and reliability. Additionally, its stand-alone design allows for easy installation and maintenance, making it a practical choice for fleet operators. When it comes to sourcing Bendix parts, Source One Parts Center is your trusted partner for genuine OEM components that guarantee exceptional performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
13.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
33.16 lb
