$799.95
$959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

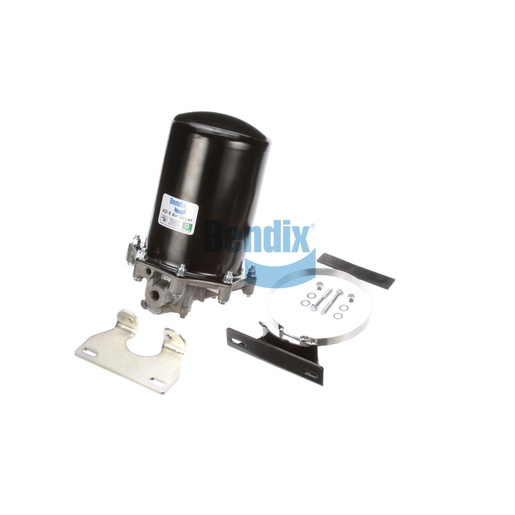

The Air Dryer from Bendix is designed to improve the efficiency of air brake systems by removing moisture and contaminants from compressed air. This dryer is engineered to handle up to 160 °F, making it ideal for rigorous commercial applications. Weighing 13.5 kg, it features a robust design that ensures durability while providing reliable performance. The air dryer integrates seamlessly into existing systems, enhancing brake response times and prolonging the life of air brake components. It features a standard purge volume and is compatible with various setups, making it a versatile choice for fleet operators. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29.75 lb
