$769.95
$923.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

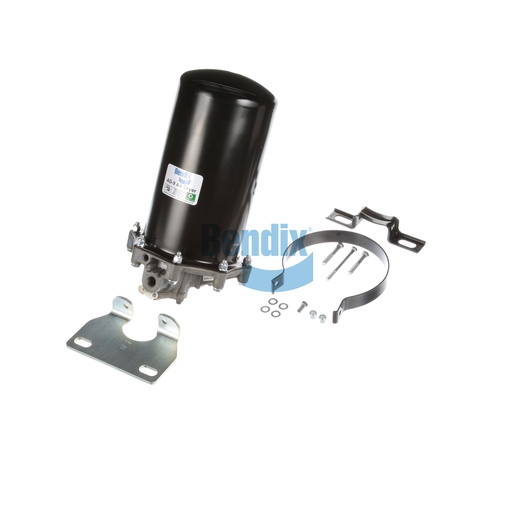

The Air Dryer is a vital component in maintaining the integrity of your truck's air brake system. Designed to remove moisture and contaminants from the compressed air, it ensures optimal brake performance and longevity of the system. This model features a robust design, suitable for a wide range of temperatures from -40°F to 160°F, making it reliable in various operating conditions. Weighing 13.8 kg (30.45 lb), this air dryer is engineered for durability and efficiency, providing superior air treatment capabilities. Its compatibility with standard air systems enhances its versatility, making it a great choice for both maintenance and upgrades. By investing in this Air Dryer, you are prioritizing the safety and efficiency of your braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that your commercial vehicle operates at its peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Volume
Extended
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
30.45 lb
