DESCRIPTION

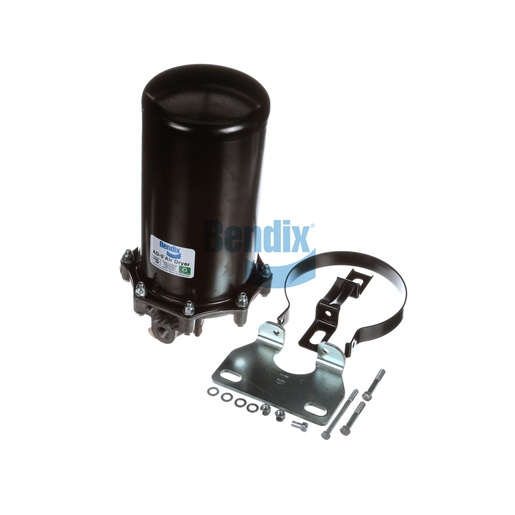

The Bendix Air Dryer is a vital component in ensuring your truck's air system is free from moisture and contaminants, which is crucial for optimal brake performance. This air dryer is designed to provide efficient air treatment, maintaining the integrity of the braking system by removing moisture from the compressed air. With a net weight of 12.5 kg, this robust unit is built for heavy-duty applications, ensuring durability and reliable performance. Its advanced design includes features that enhance its efficiency, making it essential for the longevity of your air brake system. With this air dryer, you can expect improved braking effectiveness and reduced wear on other components. Source One Parts Center is your trusted provider of genuine Bendix OEM parts, ensuring you receive the highest quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.65 IN x 1.32 IN Slot (2x)
Upper Mounting Bracket
.65 IN x 1.43 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Purge Volume
Extended
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.56 lb
