$729.95
$875.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

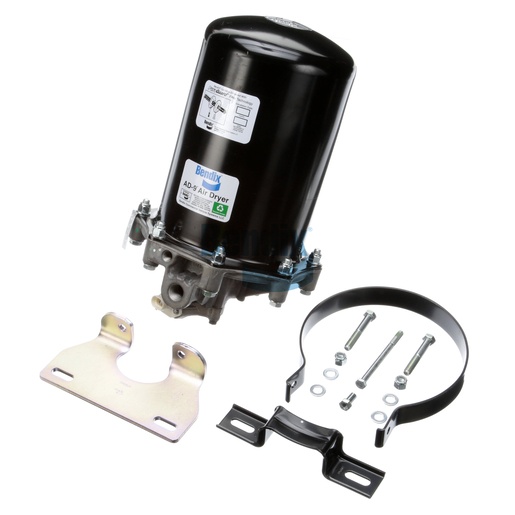

The Air Dryer from Bendix is an essential component for maintaining the integrity of your truck’s air system. Engineered for high performance, this unit effectively removes moisture and contaminants from the air supply, preventing potential damage to air-operated systems and enhancing overall efficiency. With a weight of 27.85 lbs and advanced features like a coalescing cartridge, this air dryer ensures reliable operation even in harsh environments. Its compatibility with various truck models makes it a versatile addition to your fleet's maintenance strategy. The stand-alone design enables easy installation and maintenance, ensuring minimal downtime. Investing in a quality air dryer is critical for prolonging the lifespan of your truck’s air system and maintaining safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with the assurance of quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.85 lb
