$739.95
$887.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

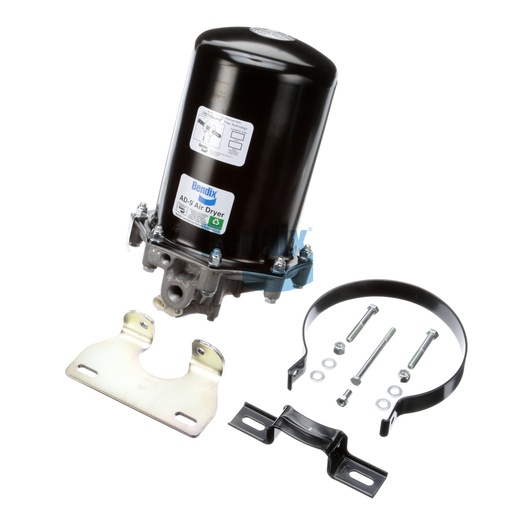

The Air Dryer is a state-of-the-art component designed to ensure the efficiency and reliability of your vehicle's air system. This model, part of the AD-9 series, features a PuraGuard coalescing cartridge that effectively removes moisture and contaminants from the compressed air, promoting optimal performance of brakes and other pneumatic systems. With a maximum inlet temperature of 160°F and operational capabilities down to -40°F, this air dryer is engineered for a wide range of environments and conditions. Its robust construction and thoughtful design facilitate easy installation and maintenance, making it a critical addition for any commercial fleet. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you have the best components for your vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.77 lb
